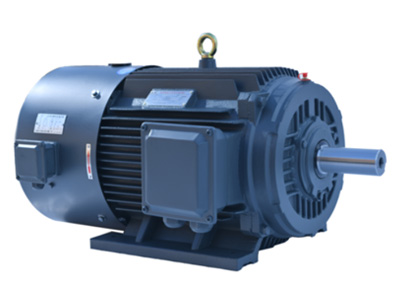

產品概述
YVF2-H 系列電動機是一種交流、高效、節能變頻調速船用電動機，與變頻
器配合使用，是機電一體化的調速新產品。功率等級和安裝尺寸完全符合國際電
工委員會（IEC）標準，適用于船舶上作驅動各種機械，如泵類、通風機、分離
器、液壓機械及其它輔助設備等之用。該電機具有如下優點：
1. 效率高，節能效果明顯；
2. 調頻范圍下，能在 5Hz~100Hz 甚至更廣的范圍內平滑無極調速；
3. 噪聲低、振動??；
4. 起動轉矩大、起動電流小，無須附加起動設備，低頻起動對負載沖擊??；
5. 結構簡單，運行穩定，使用可靠，維護方便；
6. 單獨裝有強迫冷卻風機，在不同的轉速下均有較好的冷卻效果；
7.應用范圍廣，可以在基頻（50Hz）以下作恒轉矩、基頻（50Hz）以上作恒功率
運行，基本可以取代任何一種調速產品。
工作環境
海拔≤1000m
環境溫度： 0~+45℃
空氣相對濕度 ≤95%
傾斜: ±30°
搖擺: ±22.5°
有鹽霧、油霧、霉菌及海水的影響
有船舶和近海裝置正常營運和作業中產生的沖擊、振動的影響
防護等級：IP54; 絕緣等級：F
電壓/頻率：380V/50Hz
調頻范圍：
機座號：80~225：恒轉矩：5~50Hz；恒功率：50~100Hz；
機座號：250~355：恒轉矩：3~50Hz；恒功率：50~100Hz；

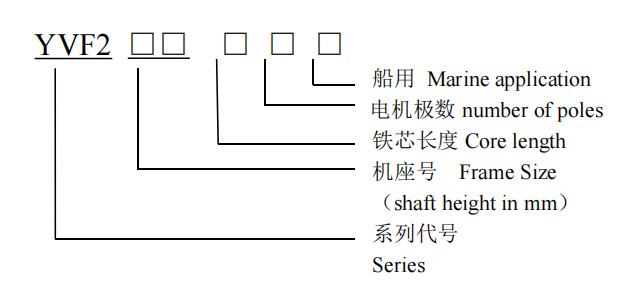

型號說明
軸承
|
機座號
|
極數
|
軸承
|
|
主軸伸端
|
非軸伸端
|
|
B3、B5、B35
|
V1
|
Non-Driving end
|
|
80
|
2，4
|
6204-2RS/C3
|
6204-2RS/C3
|
|
90
|
2，4，6
|
6205-2RS/C3
|
6205-2RS/C3
|
|
100
|
2，4，6
|
6206-2RS/C3
|
6206-2RS/C3
|
|
112
|
2，4，6，8
|
6206-2RS/C3
|
6206-2RS/C3
|
|
132
|
2，4，6，8
|
6208-2RS/C3
|
6208-2RS/C3
|
|
160
|
2，4，6，8
|
6309-2RS/C3
|
6309-2RS/C3
|
|
180
|
2，4，6，8
|
6311/C3
|
6311/C3
|
|
200
|
2，4，6，8
|
6312/C3
|
6312/C3
|
|
225
|
2 / 4，6，8
|
6312/C3/6313/C3
|
6312/C3
|
|
250
|
2 / 4，6，8
|
6313/C3/6314/C3
|
6313/C3
|
|
280
|
2/4，6，8
|
6314/C3/6317/C3
|
6314C3
|
|
315
|
2/4，6，8
|
6317/C3/N319/Z2
|
7317ACJ/7319ACJ
|
6317/C3/6319/Z2
|
|
355
|
2/4，6，8
|
6319/C3/N322/Z2
|
7319ACJ/7322ACJ
|
6319/C3/6322/Z2
|
技術數據
|
型 號
|
標稱功率(kW)
|
標稱電流(A)
|
額定轉速(r/min)
|
額定轉矩(N·m)
|
額定轉矩
|
恒轉矩變頻范圍
|
恒功率變頻范圍
|
|
YVF2-80M1-4-H
|
0.55
|
1.5
|
1390
|
3.5
|
2.3
|
5～50
|
50～100
|
|
YVF2-80M2-4-H
|
0.75
|
2.1
|
1390
|
4.7
|
|
YVF2-90S-4-H
|
1.1
|
2.7
|
1400
|
7
|
|
YVF2-90L-4-H
|
1.4
|
3.6
|
1400
|
9.5
|
|
YVF2-100L1-4-H
|
2.2
|
5
|
1420
|
14
|
|
YVF2-100L2-4-H
|
3
|
6.8
|
1420
|
14
|
|
YVF2-112M-4-H
|
4
|
8.9
|
1440
|
25.4
|
|
YVF2-132S-4-H
|
5.5
|
11.7
|
1440
|
35
|
|
YVF2-132M-4-H
|
7.5
|
15.4
|
1440
|
47.7
|
|
YVF2-160M-4-H
|
11
|
22.6
|
1460
|
70
|
|
YVF2-160L-4-H
|
15
|
30.5
|
1460
|
95.5
|
|
YVF2-180M-4-H
|
18.5
|
35.9
|
1470
|
117.1
|
|
YVF2-180L-4-H
|
22
|
42.2
|
1470
|
140.9
|
|
YVF2-200L-4-H
|
30
|
57.3
|
1476
|
190.9
|
|
YVF2-225S-4-H
|
37
|
70.2
|
1481
|
235.5
|
|
YVF2-225M-4-H
|
45
|
84
|
1480
|
286.4
|
|
YVF2-250M-4-H
|
55
|
104
|
1480
|
350.1
|
3～50
|
|
YVF2-280S-4-H
|
75
|
139
|
1480
|
477.7
|
|
YVF2-280M-4-H
|
90
|
164
|
1480
|
572.9
|
|
YVF2-315S-4-H
|
110
|
201
|
1480
|
700.2
|
2.2
|
|
YVF2-315M-4-H
|
132
|
240
|
1480
|
840.3
|
|
|
YVF2-315L1-4-H
|
160
|
289
|
1480
|
1018
|
|
|
YVF2-315L2-4-H
|
200
|
361
|
1480
|
1273
|
|
|
YVF2-355M-4-H
|
250
|
465
|
1480
|
1592
|
|
|
YVF2-355L-4-H
|
315
|
582
|
1480
|
2005
|
|
|
YVF2-90S-6-H
|
0.75
|
2.2
|
910
|
7.2
|
2.1
|
5～50
|
50～100
|
|
YVF2-90L-6-H
|
1.1
|
3.2
|
910
|
10.5
|
|
YVF2-100L-6-H
|
1.5
|
4
|
940
|
14.3
|
|
YVF2-112M-6-H
|
2.2
|
5.8
|
940
|
21
|
|
YVF2-132S-6-H
|
3
|
7.2
|
960
|
28.7
|
|
YVF2-132M1-6-H
|
4
|
9.5
|
960
|
38.2
|
|
YVF2-132M2-6-H
|
5.5
|
12.5
|
960
|
52.5
|
|
YVF2-160M-6-H
|
7.5
|
17.1
|
970
|
71.6
|
|
YVF2-160L-6-H
|
11
|
25
|
970
|
105.1
|
|
YVF2-180L-6-H
|
15
|
33
|
970
|
143.2
|
|
YVF2-200L1-6-H
|
18.5
|
37.6
|
980
|
176.7
|
|
YVF2-200L2-6-H
|
22
|
44.7
|
980
|
210.1
|
|
YVF2-225M-6-H
|
30
|
61.1
|
985
|
286.5
|
|
YVF2-250M-6-H
|
37
|
71
|
980
|
353.4
|
3～50
|
|
YVF2-280S-6-H
|
45
|
86.4
|
980
|
429.8
|
2
|
|
YVF2-280M-6-H
|
55
|
103
|
980
|
525.3
|
|
YVF2-315S-6-H
|
75
|
141
|
980
|
716.3
|
|
YVF2-315M-6-H
|
90
|
169
|
980
|
859.5
|
|
YVF2-315L1-6-H
|
110
|
206
|
980
|
1051
|
|
YVF2-315L2-6-H
|
132
|
246
|
980
|
1261
|
|
YVF2-355M1-6-H
|
160
|
302
|
980
|
1528
|
|
YVF2-355M2-6-H
|
200
|
377
|
980
|
1910
|
|
YV F2-355L-6-H
|
250
|
469
|
980
|
2388
|
|
YVF2-132S-8-H
|
2.2
|
5.8
|
710
|
28
|
5～50
|
50～100
|
|
YVF2-132M-8-H
|
3
|
7.6
|
710
|
38.2
|
|
|
YVF2-160M1-8-H
|
4
|
10.5
|
720
|
50.9
|
|
|
YVF2-160M2-8-H
|
5.5
|
13.4
|
720
|
70
|
|
|
YVF2-160L-8-H
|
7.5
|
17.7
|
720
|
95.5
|
|
|
YVF2-180L-8-H
|
11
|
25.6
|
730
|
140.1
|
|
|
YVF2-200L-8-H
|
15
|
33.3
|
729
|
191
|
|
|
YVF2-225S-8-H
|
18.5
|
40.3
|
735
|
235.6
|
|
|
YVF2-225M-8-H
|
22
|
47.4
|
734
|
278.1
|
|
|
YVF2-250M-8-H
|
30
|
64.7
|
730
|
382
|
3～50
|
|
|
YVF2-280S-8-H
|
37
|
79.8
|
740
|
471.1
|
|
|
YVF2-280M-8-H
|
45
|
94.8
|
740
|
573
|
|
|
YVF2-315S-8-H
|
55
|
113.5
|
740
|
700.3
|
|
|
YVF2-315M-8-H
|
75
|
152
|
740
|
955
|
|
|
YVF2-315L1-8-H
|
90
|
179
|
740
|
1146
|
|
|
YVF2-315L2-8-H
|
110
|
218
|
740
|
1400
|
|
|
YVF2-355M1-8-H
|
132
|
265
|
740
|
1681
|
|
|
YVF2-355M2-8-H
|
160
|
320
|
740
|
2037
|
|
|
YVF2-355L-8-H
|
200
|
399
|
740
|
2547
|
|
外形及安裝尺寸

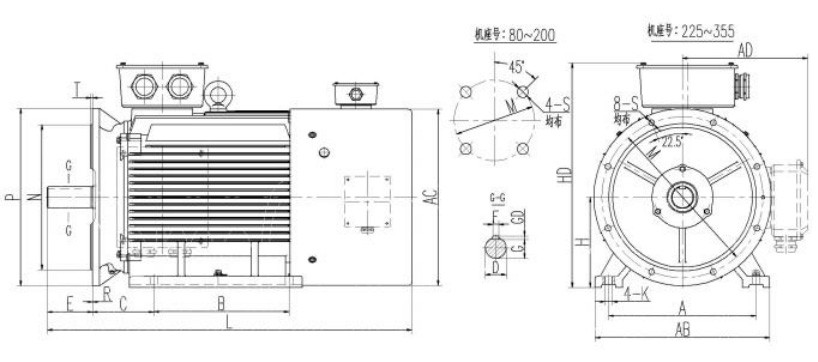

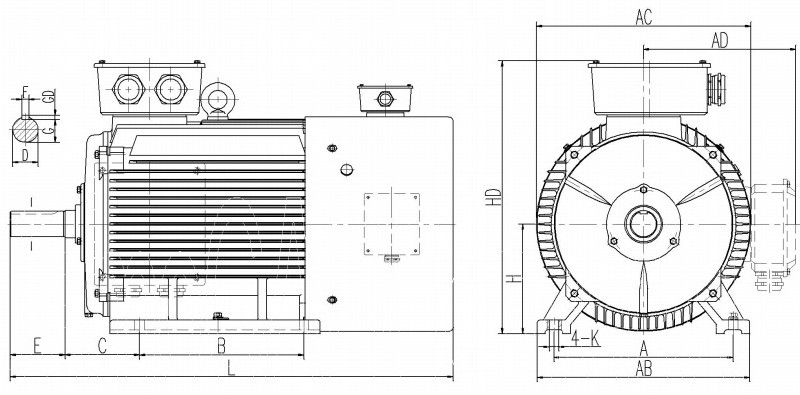

B3 型
|
機座號
|
安 裝 及 外 形 尺 寸
|
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
GD
|
H
|
K
|
AB
|
AC
|
AD
|
HD
|
L
|
|
80M
|
125
|
100
|
50
|
19
|
40
|
6
|
15.5
|
6
|
80
|
10
|
165
|
175
|
160
|
240
|
350
|
|
90S
|
140
|
56
|
24
|
50
|
8
|
20
|
7
|
90
|
180
|
195
|
175
|
270
|
400
|
|
90L
|
125
|
430
|
|
100L
|
160
|
140
|
63
|
28
|
60
|
24
|
100
|
12
|
205
|
215
|
185
|
290
|
465
|
|
112M
|
190
|
70
|
112
|
245
|
240
|
195
|
320
|
490
|
|
132S
|
216
|
89
|
38
|
80
|
10
|
33
|
8
|
132
|
280
|
275
|
245
|
365
|
430
|
|
132M
|
178
|
590
|
|
160M
|
254
|
210
|
108
|
42
|
110
|
12
|
37
|
160
|
15
|
330
|
330
|
270
|
440
|
660
|
|
160L
|
254
|
715
|
|
180M
|
279
|
241
|
121
|
48
|
14
|
42.5
|
9
|
180
|
355
|
380
|
290
|
475
|
810
|
|
180L
|
279
|
850
|
|
200L
|
318
|
305
|
133
|
55
|
16
|
49
|
10
|
200
|
19
|
395
|
420
|
355
|
525
|
890
|
|
225S
|
356
|
286
|
149
|
60
|
140
|
18
|
53
|
11
|
225
|
435
|
470
|
370
|
580
|
930
|
|
225M
|
311
|
970
|
|
250M
|
406
|
349
|
168
|
65
|
140
|
18
|
58
|
11
|
250
|
24
|
490
|
510
|
455
|
650
|
1050
|
|
280S
|
457
|
368
|
190
|
75
|
20
|
67.5
|
12
|
280
|
550
|
580
|
470
|
705
|
1100
|
|
280M
|
419
|
1160
|
|
315S
|
508
|
406
|
216
|
80
|
170
|
22
|
71
|
14
|
315
|
28
|
744
|
645
|
576
|
875
|
1330
|
|
315M
|
457
|
1470
|
|
315L
|
508
|
|
355M
|
610
|
560
|
254
|
95
|
25
|
86
|
14
|
355
|
28
|
740
|
750
|
680
|
1045
|
1750
|
B35 型
|
機座號
|
安裝及外形尺寸
|
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
GD
|
H
|
K
|
M
|
N
|
P
|
R
|
S
|
T
|
AB
|
AC
|
AD
|
HD
|
HD '
|
L
|
|
80M
|
125
|
100
|
50
|
19
|
40
|
6
|
15.5
|
6
|
80
|
10
|
165
|
130
|
200
|
0±1.5
|
12
|
3.5
|
165
|
175
|
160
|
205
|
240
|
350
|
|
90S
|
140
|
56
|
24
|
50
|
8
|
20
|
7
|
90
|
180
|
195
|
175
|
225
|
270
|
400
|
|
90L
|
125
|
430
|
|
100L
|
160
|
140
|
63
|
28
|
60
|
24
|
100
|
12
|
215
|
180
|
250
|
0±2.0
|
15
|
4
|
205
|
215
|
185
|
250
|
290
|
465
|
|
112M
|
190
|
70
|
112
|
245
|
240
|
195
|
270
|
320
|
490
|
|
132S
|
216
|
89
|
38
|
80
|
10
|
33
|
8
|
132
|
265
|
230
|
300
|
280
|
275
|
245
|
320
|
365
|
530
|
|
132M
|
178
|
590
|
|
160M
|
254
|
210
|
108
|
42
|
110
|
12
|
37
|
160
|
15
|
300
|
250
|
350
|
0±3.0
|
19
|
5
|
330
|
330
|
270
|
385
|
440
|
660
|
|
160L
|
254
|
715
|
|
180M
|
279
|
241
|
121
|
48
|
14
|
42.5
|
9
|
180
|
355
|
380
|
290
|
425
|
475
|
810
|
|
180L
|
279
|
850
|
|
200L
|
318
|
305
|
133
|
55
|
16
|
49
|
10
|
200
|
19
|
350
|
300
|
400
|
395
|
420
|
355
|
475
|
525
|
890
|
|
225S
|
356
|
286
|
149
|
60
|
140
|
18
|
53
|
11
|
225
|
400
|
350
|
450
|
0±4.0
|
435
|
470
|
370
|
530
|
580
|
930
|
|
225M
|
311
|
970
|
|
250M
|
406
|
349
|
168
|
65
|
140
|
18
|
58
|
11
|
250
|
24
|
500
|
450
|
550
|
490
|
510
|
455
|
570
|
650
|
1050
|
|
280S
|
457
|
368
|
190
|
75
|
20
|
67.5
|
12
|
280
|
550
|
580
|
470
|
640
|
705
|
1100
|
|
280M
|
419
|
1160
|
|
315S
|
508
|
406
|
216
|
80
|
170
|
22
|
71
|
14
|
315
|
28
|
600
|
550
|
660
|
24
|
6
|
744
|
645
|
576
|
865
|
875
|
1330
|
|
315M
|
457
|
1450
|
|
315L
|
508
|
1450
|
|
355M
|
610
|
560
|
254
|
95
|
25
|
86
|
14
|
355
|
740
|
680
|
800
|
740
|
750
|
680
|
1035
|
1045
|
1750
|

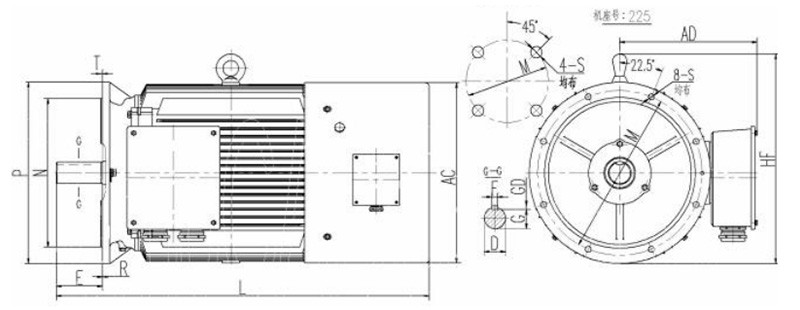

V1 型
|
機座號
|
安裝及外形尺寸
|
|
D
|
E
|
F
|
G
|
GD
|
M
|
N
|
P
|
S
|
R
|
T
|
AC
|
AD
|
HF
|
L
|
|
80M
|
19
|
40
|
6
|
15.5
|
6
|
165
|
130
|
200
|
12
|
0±1.5
|
3.5
|
175
|
160
|
260
|
390
|
|
90S
|
24
|
50
|
8
|
20
|
7
|
195
|
175
|
270
|
445
|
|
90L
|
480
|
|
100L
|
28
|
60
|
24
|
215
|
180
|
250
|
15
|
0±2.0
|
4
|
215
|
185
|
300
|
510
|
|
112M
|
240
|
195
|
320
|
535
|
|
132S
|
38
|
80
|
10
|
33
|
8
|
265
|
230
|
300
|
275
|
245
|
380
|
580
|
|
132M
|
635
|
|
160M
|
42
|
110
|
12
|
37
|
300
|
250
|
350
|
19
|
0±3.0
|
5
|
330
|
270
|
450
|
715
|
|
160L
|
770
|
|
180M
|
48
|
14
|
42.5
|
9
|
380
|
290
|
490
|
870
|
|
180L
|
910
|
|
200L
|
55
|
16
|
49
|
10
|
350
|
300
|
400
|
420
|
355
|
550
|
950
|
|
225S
|
60
|
140
|
18
|
53
|
11
|
400
|
350
|
450
|
0±4.0
|
470
|
370
|
610
|
995
|
|
225M
|
1020
|
|
250M
|
65
|
140
|
18
|
58
|
11
|
500
|
450
|
550
|
510
|
455
|
645
|
1110
|
|
280S
|
75
|
20
|
67.5
|
12
|
580
|
470
|
720
|
1170
|
|
280M
|
1230
|
|
315S
|
80
|
170
|
22
|
71
|
14
|
600
|
550
|
660
|
24
|
6
|
645
|
576
|
900
|
1450
|
|
315M
|
1600
|
|
315L
|
1600
|
|
355M
|
95
|
|
25
|
86
|
14
|
740
|
680
|
800
|
750
|
680
|
1035
|
1800
|
|
355L
|
1800
|

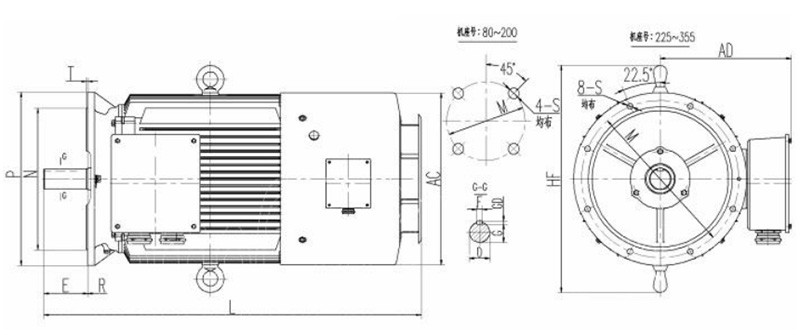

B5 型
|
機座號
|
安裝及外形尺寸
|
|
D
|
E
|
F
|
G
|
GD
|
M
|
N
|
P
|
R
|
S
|
T
|
AC
|
AD
|
HF
|
L
|
|
80M
|
19
|
40
|
6
|
15.5
|
6
|
165
|
130
|
200
|
0±1.5
|
12
|
3.5
|
175
|
160
|
230
|
350
|
|
90S
|
24
|
50
|
8
|
20
|
7
|
195
|
175
|
235
|
400
|
|
90L
|
430
|
|
100L
|
28
|
60
|
24
|
215
|
180
|
250
|
0±2.0
|
15
|
4
|
215
|
185
|
275
|
465
|
|
112M
|
240
|
195
|
285
|
490
|
|
132S
|
38
|
80
|
10
|
33
|
8
|
265
|
230
|
300
|
275
|
245
|
340
|
530
|
|
132M
|
590
|
|
160M
|
42
|
110
|
12
|
37
|
300
|
250
|
350
|
0±3.0
|
19
|
5
|
330
|
270
|
400
|
660
|
|
160L
|
715
|
|
180M
|
48
|
14
|
42.5
|
9
|
380
|
290
|
435
|
810
|
|
180L
|
850
|
|
200L
|
55
|
16
|
49
|
10
|
350
|
300
|
400
|
420
|
355
|
480
|
890
|
|
225S
|
60
|
140
|
18
|
53
|
11
|
400
|
350
|
450
|
0±4.0
|
470
|
370
|
530
|
930
|
|
225M
|
970
|
注：本產品樣本中，所有產品數據參數僅供參考，如有疑問請與工廠聯系，并以定貨時提供給用戶的確認資料為準。
Y-H系列船用三相異步電動機
